Charmilles EDM Spare Parts
ตารางรายการสินค้าอะไหล่ Charmilles EDM Wire Cut สำหรับงานซ่อมบำรุงและจัดซื้ออะไหล่ เช่น Wire Guide, Water Nozzle, Power Feed Contact, Pinch Roller, Ceramic Cutter และ Filter

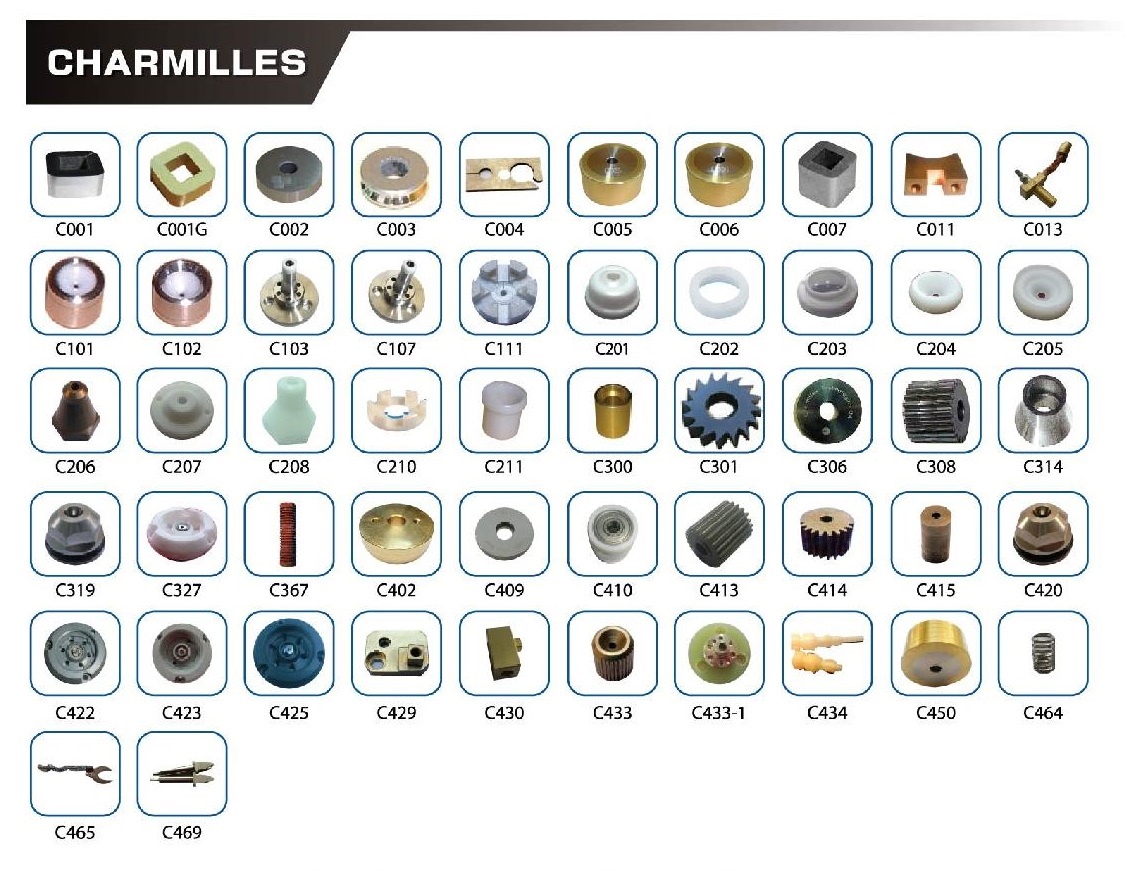

| Code | Image | Product Name | Position | Dimension / Type | Application | Original P/No |
|---|---|---|---|---|---|---|
| C101 |  |
Upper Wire Guide / 0.1~0.3mm | Upper | Wire Guide / 0.1~0.3mm | ROBOFIL series | 200431113 / 100432511 / 200432512 |
| C102 |  |
Lower Wire Guide / 0.1~0.3mm | Lower | Wire Guide / 0.1~0.3mm | ROBOFIL series | 200431122 / 100430586 / 200432814 |
| C111 |  |
Upper Threading Nozzle(ceramic) Upper D =0.8mm | Upper | Threading Nozzle(ceramic) Upper D =0.8mm | ROBOFIL / 100200400 / series | 100431787 |
| C111 | |
Upper Threading Nozzle(ceramic) Upper D =1.8mm | Upper | Threading Nozzle(ceramic) Upper D =1.8mm | ROBOFIL / 100200400 / series | 100431787 |
| C201 |  |
Upper / & / Lower Water Nozzle / 35*7O*16 | Upper / & / Lower | Water Nozzle / 35*7O*16 | ROBOFIL / 230,290,300,500, / 1020,2020 ,2030 | 104323510 |
| C202 |  |
Lower Water Nozzle / 45Ø*11L | Lower | Water Nozzle / 45Ø*11L | 4020403060206030 / ROBOFIL / 230,290,300,500, / 1020,2020 ,2030 | 100443733 |
| C204 |  |
Lower Water Nozzle / 6Ø*33L / 13Ø*33L | Lower | Water Nozzle / 6Ø*33L / 13Ø*33L | 4020403060206030 / 440CC | 200641617 / 135005189 |
| C205 |  |
Water Nozzle / 6Ø | Water Nozzle / 6Ø | 440CC | 200542917 | |
| C206 |  |
Upper Water Nozzle / 6Ø | Upper | Water Nozzle / 6Ø | ROBOFIL / 1020 | |
| C001 |  |
Upper Power Feed / Contact / 12*12*5t | Upper | Power Feed / Contact / 12*12*5t | ROBOFIL / series | 100432997 |
| C002 |  |
Upper Power Feed / Contact / 12*12*10t | Upper | Power Feed / Contact / 12*12*10t | ROBOFIL2030SI, / 4030SI,6030SI | 30003173 |
| C004 |  |
Upper Centering Eye / 1.2*19*10 | Upper | Centering Eye / 1.2*19*10 | ROBOFIL1000,2000 / 4000,6000,3XX,5XX | 100.441.275 |
| C005 |  |
Upper Power Feed / Contact / 12*30 | Upper | Power Feed / Contact / 12*30 | ROBOFIL CUT2000 | |
| C010 |  |
Upper Power Feed / Contact Holder / 25*19*5.6t | Upper | Power Feed / Contact Holder / 25*19*5.6t | ROBOFIL series | |
| C010A |  |
Upper Power Feed / Contact Holder / 18*15*43t | Upper | Power Feed / Contact Holder / 18*15*43t | ROBOFIL series | 333.014.032 |
| C040 |  |
Lower Contact Brush / 15L*16H*6t | Lower | Contact Brush / 15L*16H*6t | ROBOFIL series | 100446687 |
| C000 |  |
Screen / TFT-LCD | Screen / TFT-LCD | ROBOFIL | ||
| C405 |  |
Lower Pinch Roller / (Flat) / 50D*8d*24t | Lower | Pinch Roller / (Flat) / 50D*8d*24t | ROBOFIL / 290300310500 / 510series | 100449019 |
| C406 |  |
Lower PinchRoller / (with 4-Groove) / 50D*8d*24t | Lower | PinchRoller / (with 4-Groove) / 50D*8d*24t | ROBOFIL / 290300310500 / 510series | 100449329 |
| C407 |  |
Lower Pinch Roller / (Flat) / 50D*12d*14t | Lower | Pinch Roller / (Flat) / 50D*12d*14t | ROBOFIL / 290300310500 / 510series | 130003359 |
| C408 |  |
Lower Pinch Roller / (with 2-Groove) / 50D*12d*14t | Lower | Pinch Roller / (with 2-Groove) / 50D*12d*14t | ROBOFIL / 290300310500 / 510series | 130003360 |
| C409 |  |
Lower Pinch Roller / 40D*12d*6t | Lower | Pinch Roller / 40D*12d*6t | ROBOFIL / 230,330series | 100542999 |
| C410 |  |
Wire Ceramic Roller / 63D*16d*25t | Wire Ceramic Roller / 63D*16d*25t | ROBOFIL / CUT20.30 series | 332015168 | |
| C411 |  |
Lower Pinch Roller / Gear Plate / 40D*12d*47.5L | Lower | Pinch Roller / Gear Plate / 40D*12d*47.5L | ROBOFIL / 640CCS series | 135011897 |
| C500 |  |
水蓋固定座 / Water Nozzle Base / 50*50*30H | 水蓋固定座 / Water Nozzle Base / 50*50*30H | ROBOFIL / 500C series | ||
| C501 |  |
Rectifier Ring / 40*19*3.8t | Rectifier Ring / 40*19*3.8t | |||
| C502 |  |
D10*26.5L | D10*26.5L | |||
| C503 |  |
D10*38.5L | D10*38.5L | |||
| C504 |  |
Lower Knife / 8D*2d*13.5L | Lower | Knife / 8D*2d*13.5L | ROBOFIL230,300, / 310series | |
| C505 |  |
自動穿線剪刀 / Ceramic Cutter / 24*30*5t | 自動穿線剪刀 / Ceramic Cutter / 24*30*5t | ROBOFIL / 640CCS series | 200641638 | |
| C506 |  |
Ceramic counter cutter / 19*4.17t | Ceramic counter cutter / 19*4.17t | Charmilles FI 100, 1020,1020.1, 1020SI, 190, 200,2020,2020.1,2020SI, 230,290,... | 100445990 / Reference number:24.04.902 | |
| C507 |  |
Cutter Ceramic / 8.75*4t | Cutter Ceramic / 8.75*4t | Charmilles FI 100, 1020,1020.1, 1020SI, 190, 200,2020,2020.1,2020SI, 230,290,... | 200448792 / Reference number:24.04.915 | |
| C508 |  |
Nozzle Ceramic / 6*4t | Nozzle Ceramic / 6*4t | CUT 20, CUT 20 P, CUT 30, CUT 30 P, 2030SI, 2030SI-TW, 2050TW, ,240 CC, 240 C... | , 200640978 / Reference number:24.54.434 | |
| C509 |  |
Suction tube Ceramic / 4.2*6.7t | Suction tube Ceramic / 4.2*6.7t | OEM number:135005953 / ltem number: 24.04.834 | ||
| C510 |  |
Chamber Wire Remova / 切削底座 | Chamber Wire Remova / 切削底座 | ROBOFI 330F | OEM number:135009529 / 200422631 / ltem number: 422.631 | |
| C510A |  |
Chamber Wire Remova / 切削底座 | Chamber Wire Remova / 切削底座 | ROBOFI 240S | OEM number:135018811 135009529 135018458 / ltem number: | |
| C511 |  |
C725, C736 V-guide / 夏米爾C725、C736 V型導軌 | C725, C736 V-guide / 夏米爾C725、C736 V型導軌 | Machine Model: CUT 200, CUT 200 mS,CUT 200 Sp, CUT 300, CUT 300 mS, CUT 300 S... | OEM No.: 135009544, 434.544, 200434544 | |
| C512 |  |
ceramic ring 58*50*12 / 陶瓷環 | ceramic ring 58*50*12 / 陶瓷環 | OEM No.: 335014040 535007546 | ||
| C513 |  |
Housing empty lower head composite / 下機頭底座 | Housing empty lower head composite / 下機頭底座 | AgieCharmilles CUT 200, CUT 200 mS, CUT 200 Sp, CUT 300, CUT 300 mS, CUT 300 ... / Charmilles FI 240, FI 240 CC, FI 240 CCS, FI 240 SL, FI 240 SLP, FI 440, Char... | OEM No.: 135009643 135016720 | |
| SW31 |  |
Int Filter / 150*31*375 | Int | Filter / 150*31*375 | ROBOFIL230,290, / 310,500,510, / 102040206020 | |
| SW37 |  |
Int Filter / 340*46*450 | Int | Filter / 340*46*450 | series / ROBOFIL230,290, / 3003105005101020 / 2020402040306020 |
EDM Wire Cut Spare Parts for Charmilles Machine
IDEA CNC จัดจำหน่ายอะไหล่เครื่อง EDM Wire Cut สำหรับเครื่อง Charmilles และ AgieCharmilles รองรับงานซ่อมบำรุงในโรงงานอุตสาหกรรม งานแม่พิมพ์ งานผลิตชิ้นส่วน และงานเครื่องจักรความละเอียดสูง
- รองรับรุ่น ROBOFIL, CUT Series และเครื่อง Charmilles หลายรุ่น
- เหมาะสำหรับงานเปลี่ยนอะไหล่ Wire Guide, Nozzle, Contact, Roller, Cutter และ Filter
- ใช้ Code และ Original Part Number เพื่อช่วยตรวจสอบสินค้าได้เร็วขึ้น
