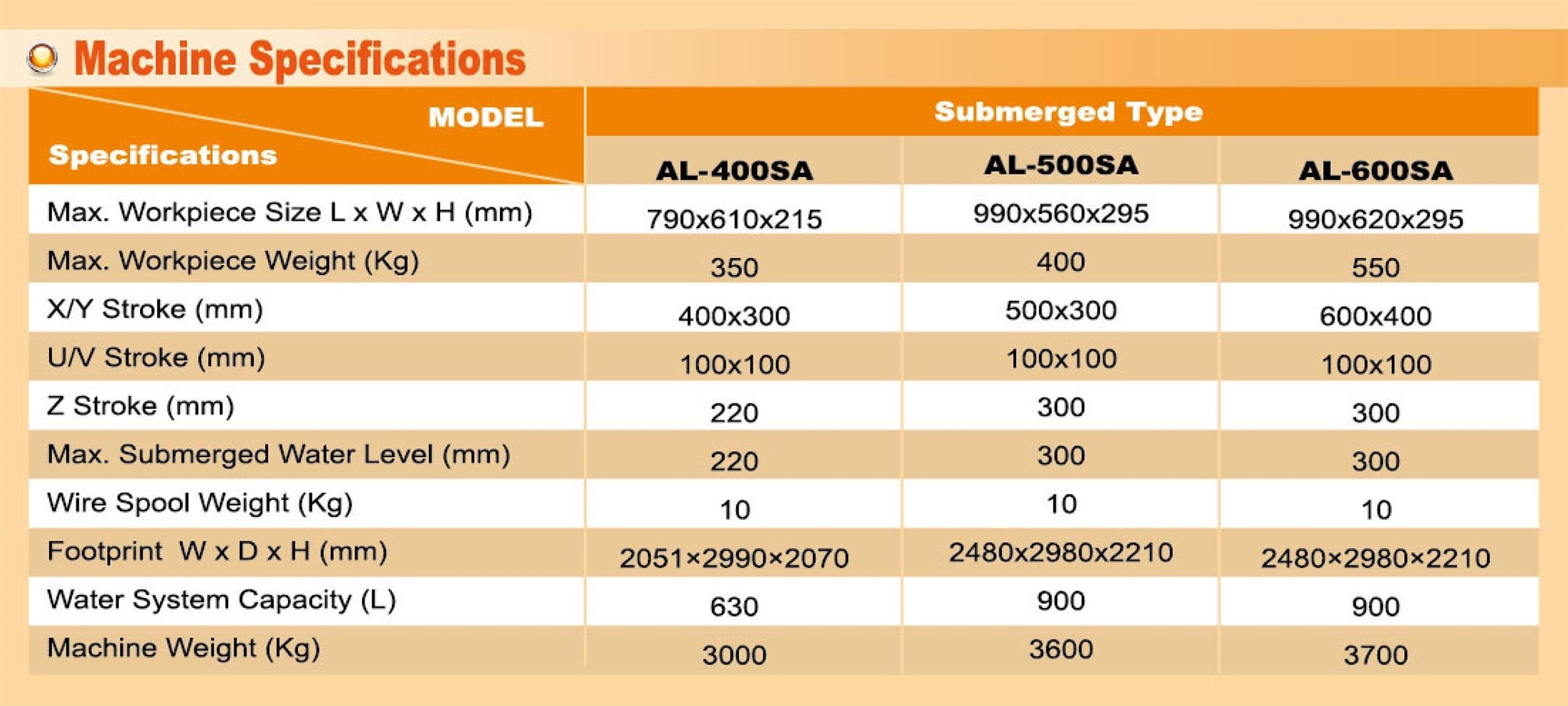

(*)To acquire the optimum stable cutting performance,the suggested-maximum height of cutting workpiece is the Z axis stroke minus 30mm.

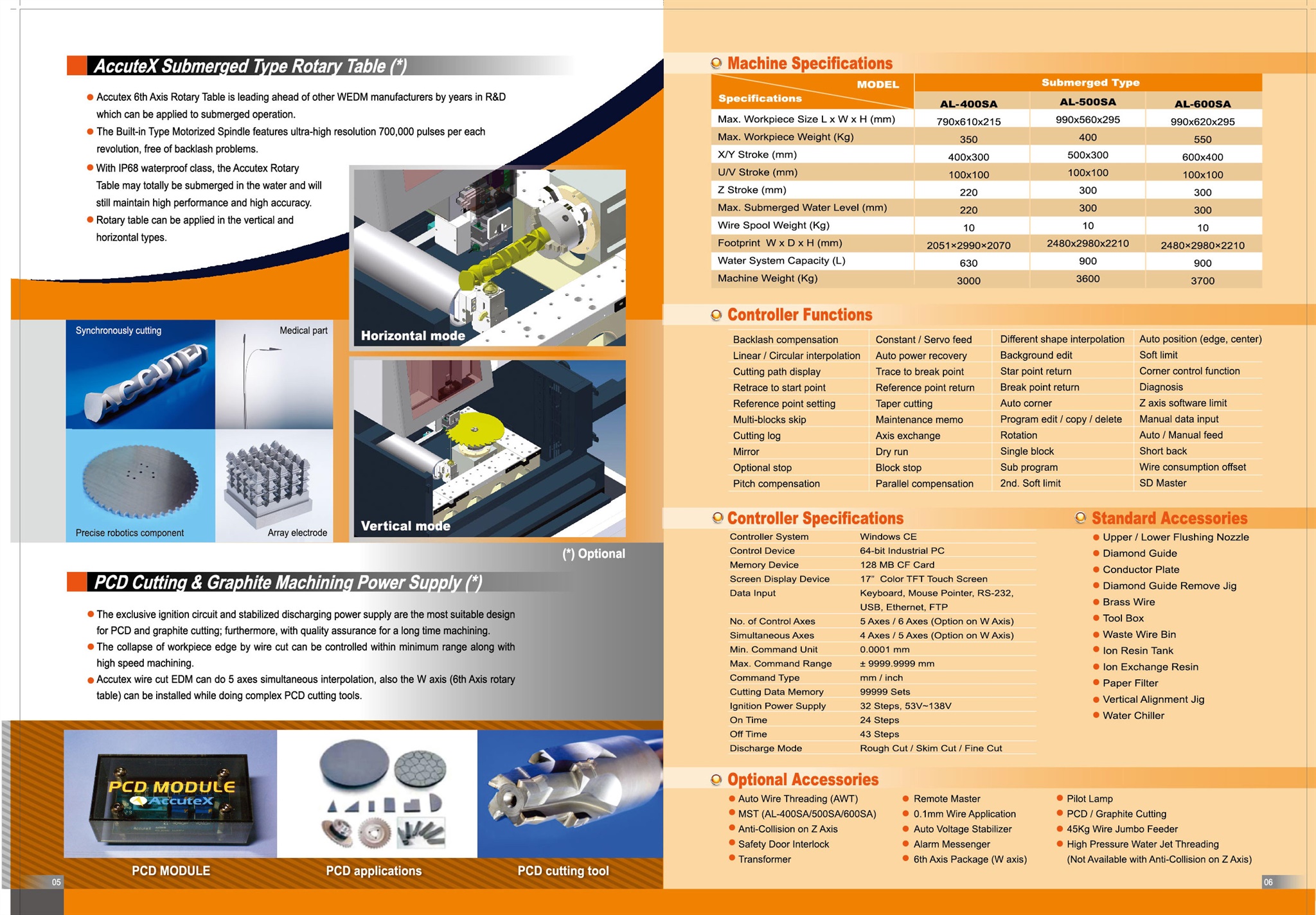

Controller Specifications
| Blacklash compensation | WINDOWS CE |
|---|---|
| Control Device | 64-bit Industrial PC |
| Memory Device | 1GB CF Card |
| Screen Display Device | 17” Color TFT Touch Screen |
| Data Input | Keyboard, RS-232, USB, Ethernet, FTP |
| Simultaneous Axes | 4 Axes / 5 Axes (Option on W Axis) |
| No. of Control Axes | 5 Axes / 6 Axes (Option on W Axis) |
| Min. Command Unit | 0.0001mm |
| Max. Command Range | ±9999.9999 mm |
| Command Type | mm / inch |
| Cutting Data Memory | 99999 sets |
| Ignition Power Supply | 32 Steps，53V~138V |
| On time | 24 Steps |
| Off time | 43 Stpes |
| Discharge Mode | Rough Cut / Skim Cut / Fine Cut |

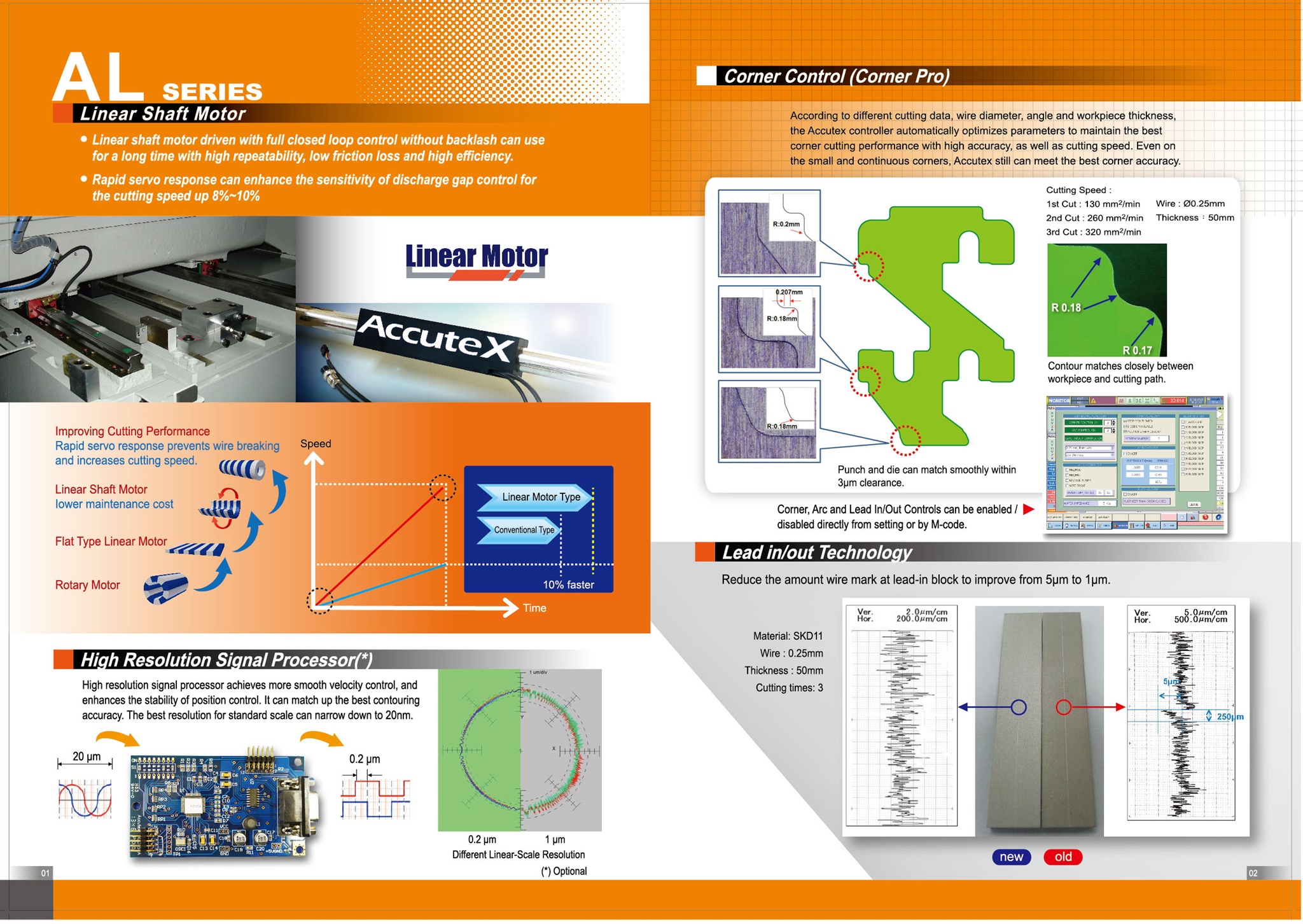

Controller Functions
| Backlash compensation | Constant / Servo feed | Different shape interpolation | Auto position (edge, center) |
| Linear / Circular interpolation | Auto power recovery | Background edit | Soft limit |
| Cutting path display | Trace to break point | Star point return | Corner control function |
| Retrace to start point | Reference point return | Break point return | Diagnosis |
| Reference point setting | Taper cutting | Auto corner | Z axis software limit |
| Multi-blocks skip | Maintenance memo | Program edit / copy / delete | Manual data input |
| Cutting log | Axis exchange | Rotation | Auto / Manual feed |
| Mirror | Dry run | Single block | Short back |
| Optional stop | Block stop | Sub program | Wire consumption offset |
| Pitch compensation | Parallel compensation | 2nd. Soft limit | Anti-Collision |

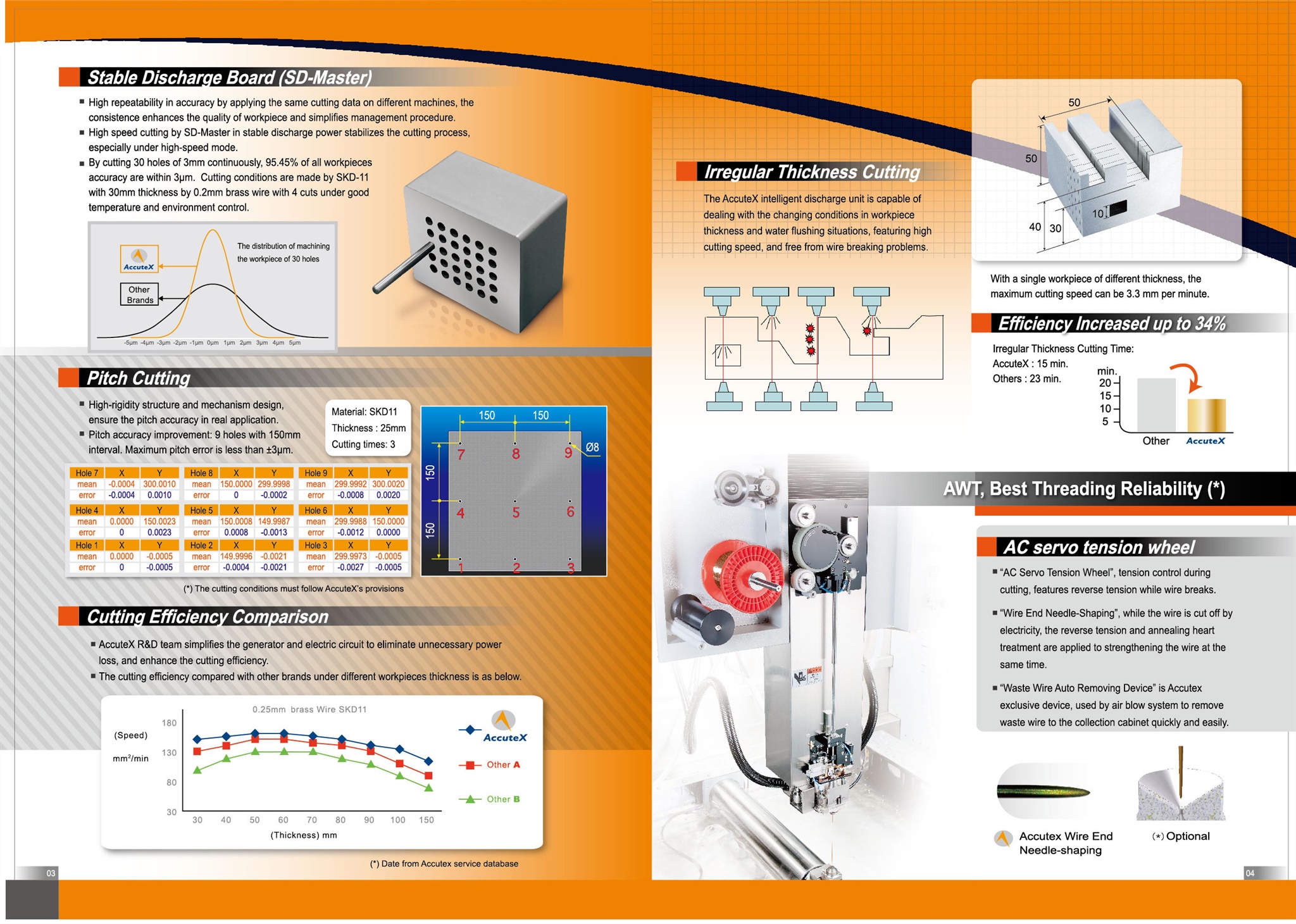

Standard Accessories
| Upper / Lower Flushing Nozzle | Diamond Guide | Conductor Plate |
| Diamond Guide Remove Jig | Brass Wire | Tool Box |
| Waste Wire Bin | Ion Resin Tank | Ion Exchange Resin |
| Paper Filter | Vertical Alignment Jig | Water Chiller |
| SD Master | Auto Wire Threading (AWT) |
| Spray mist Lubricator | Pilot Lamp | Remote Master |
| Safety Door Interlock | PCD / Graphite Cutting | 0.1mm Wire Application |
| Transformer | 45Kg Wire Jumbo Feeder | Auto Voltage Stabilizer |
| X/Y Linear Scale | 6th Axis Package (W axis) | Alarm Messenger |
| MST (AL-400SA/500SA/560SA/600SA) |
High Pressure Water Jet Threading (Not Available with Anti-Collision on Z Axis) |
|
